Door Shelters

DESCRIPTION

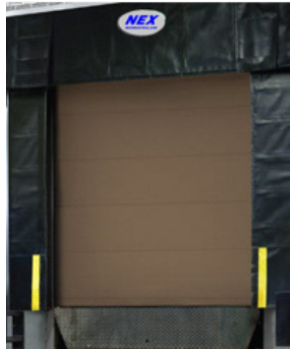

NEX Industrial ’s Dock Shelters differ mainly on their impactability levels. Each model provides unrestricted access to the trailer interiors, enabling efficient loading and unloading while keeping out rain, snow, and debris.

MODELS

FULL FRAME SHELTER
10’0”W X 10’0” H OPENINGS
✦ Generally designed for but not limited to 10’ wide x 10’ high openings.
✦ This unit is ideal for tailgate or standard trailers.
✦ The design of this unit allows the trailer to pass through the side and top curtains allowing full unrestricted access to the rear of the trailer when loading and unloading.
✦ With no mechanical or adjustable parts, this unit is designed to prevent many of the problems that arise from conventional seals and shelters.
✦ With foam side frames and removable side curtains, this unit is ideal for virtually every application.

RETRACTABLE RAIL SHELTER
10’0”W X 10’0” H OPENINGS
✦ Generally designed to suit door openings up to 10’wide x 10′ high.
✦ The retractable rail shelter is designed to create a seal between the building wall and the side of the rail car.
✦ A galvanized retractable frame with compressible foam pads is extended out to meet the rail car.
✦ The unit is retracted against the building wall when not in use.

RETRACTABLE TRUCK SHELTER
10’0”W X 10’0” H OPENINGS
✦ Generally designed to suit 10’ wide x 10’ high openings.
✦ This unit provides full access to the rear of the trailer while creating a tight seal against the top and rear of the trailer.
✦ The collapsible frame is designed to retract upon impact from the trailer thus reducing pressure against the curtains and extending the life of the unit.
✦ This also allows for less pressure against the building wall. With one of the largest selections and colours of fabrics available.

STATIONARY TRUCK SHELTER
10’0”W X 10’0” H OPENINGS
✦ Generally designed to suit 10 ́ wide x 10 ́ high openings.
✦ This unit provides full access to the rear of the trailer while creating a tight seal against the top and sides of the truck.
✦ Wear flaps are located on the head curtain at the contact areas and a double layer of fabric is sewn onto the bottom 24 ́ ́ of the side curtains for added reinforcement.
✦ With one of the largest selections and colours of fabrics available, NEX Industrial can offer the ideal solution for your unique loading dock requirements.
